Name: Decked - Drawer System - 2015-2020 F150 / 2017-2020 Raptor
SKU: 84572

Drawer System

Get rid of the random tubs and bins, get the jumper cables out from under the back seat, stop shoving the duct tape from where it rolled. End the junk show with segmented storage.

2000 LB PAYLOAD: 200 LBS CAPACITY PER DRAWER

Your truck ain't a man purse. It hauls heavy stuff like cement, plywood, ATV/Moto's, your mother-in-laws new freezer. You can stack 2000 lbs. of big stuff on top of the deck and still have access to smooth rolling storage.

WEATHERPROOF

Anything falling from the sky can’t get into your drawers. Period. They're not Tupperwear-tight; airborne particulate like dust or mist can make it's way in.

SECURE: PEACE OF MIND

DECKED's two full bed-length drawers keep your tools and gear secure, out of sight and out of mind. Lock your tailgate and lock your drawers. Your essentials are in a mobile Fort Knox.

FEATURES

HIGH DENSITY POLYETHYLENE: Impervious to extreme UV light and temperatures. Born for harsh environments.
STEEL SUBFRAME: Galvanized steel skeleton in-molded to HDPE = Unmatched strength-to-weight ratio of 10:1.
FITS LIKE A GLOVE: Custom shaped to fit your bed. No loss of usable space.
AMMO CAN STORAGE: Extra compartments by the wheel-wells to maximize your storage options.
HANDLE: So easy to operate, even a bear could do it... with gloves on.
WHEELS: Urethane, sealed bearing drawer wheels. Roll. Like. Butter.
RULER & BOTTLE OPENER: Handy fine finishes because we care. Treated with robust corrosion inhibitors.
ZERO TO MINIMAL DRILLING: J-hooks attach to bed tie downs. Easy to assemble, install or remove.
RECYCLED MATERIALS: Made from 100% recycled HDPE and recycled American Steel.

DECKED truck bed storage drawers provide the ultimate access and organization DECKED truck bed storage drawers provide the ultimate access and organization for your tools and gear. Get a DECKED system today for your Ford F150/Raptor.

TECH SPECS

WEIGHT CAPACITIES:

2000 lb. payload evenly distributed
200 lb. payload per drawer

SYSTEM DIMENSIONS:

5' 6" Bed:

TOTAL WEIGHT: ~220 lbs.
LENGTH: 64.54"
WIDTH: 63"-71"
HEIGHT: 12"
SHIPPING DIMS: 241 lbs., 67"x 39" x 23"

6' 6" Bed:

TOTAL WEIGHT: ~230 lbs.
LENGTH: 75.25"
WIDTH: 63"-71"
HEIGHT: 12"
SHIPPING DIMS: 270 lbs., 78"x 39" x 23"

DRAWER DIMENSIONS:

5' 6" Bed:

LENGTH (top of drawer): 61.4”
LENGTH (bottom of drawer): 55.4”
WIDTH (top of drawer): 18”
WIDTH (bottom of drawer): 16.75”
HEIGHT: 8.5”
VOLUME (each): 5.4 FT3
EXTENSION (each): 42"

6' 6" Bed:

LENGTH (top of drawer): 72.1”
LENGTH (bottom of drawer): 66.1”
WIDTH (top of drawer): 18”
WIDTH (bottom of drawer): 16.75”
HEIGHT: 8.5”
VOLUME (each): 6 FT3
EXTENSION (each): 42"

Built from 100% recycled HDPE (High Density Polyethylene) in-molded to a galvanized recycled steel subframe.

STUFF YOU MIGHT NEED TO KNOW

This DECKED Drawer System fits a 2015-2020 F150 or 2017-2020 Raptor Aluminum pickup truck with a bed length of 5 '6" or 6' 6".

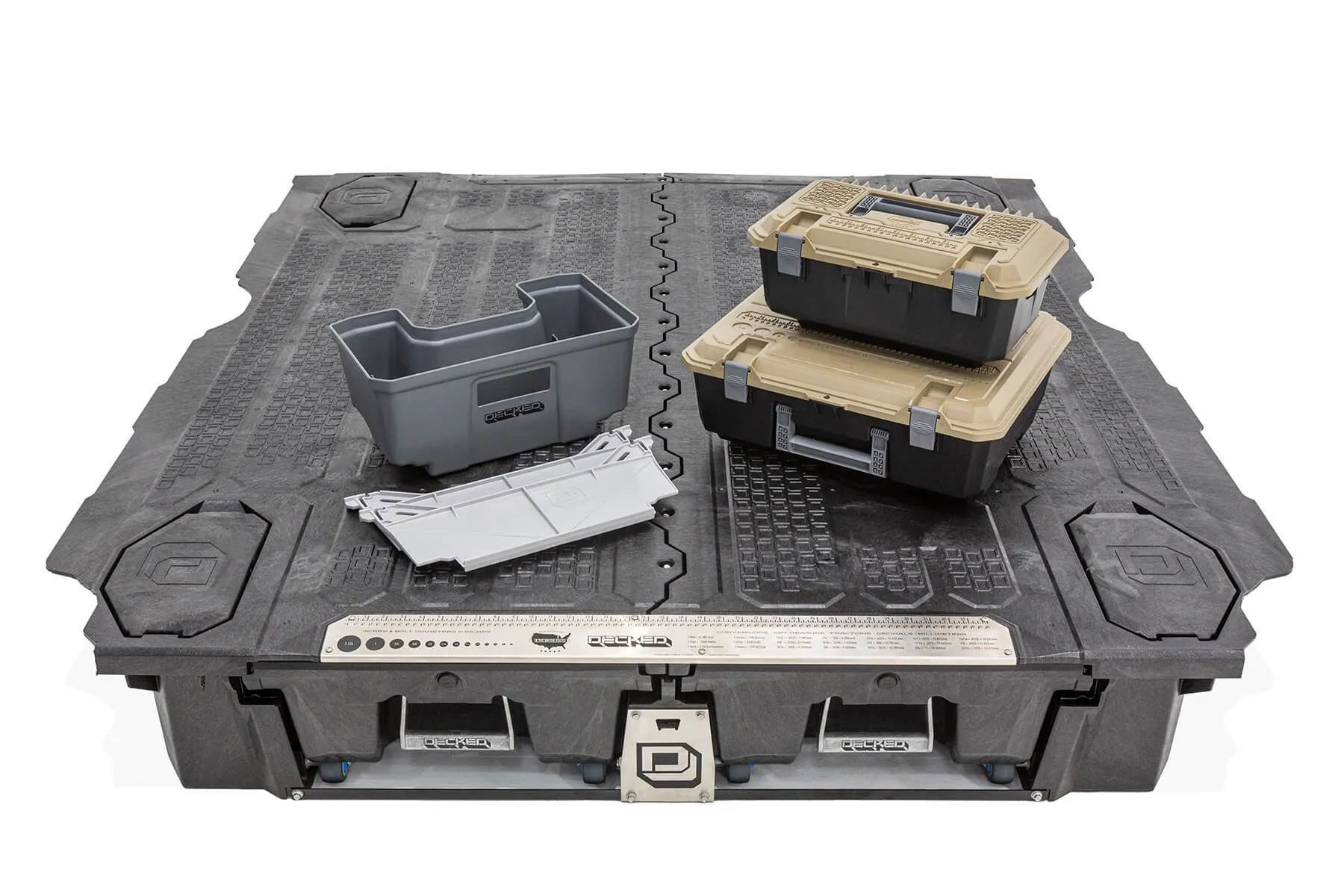

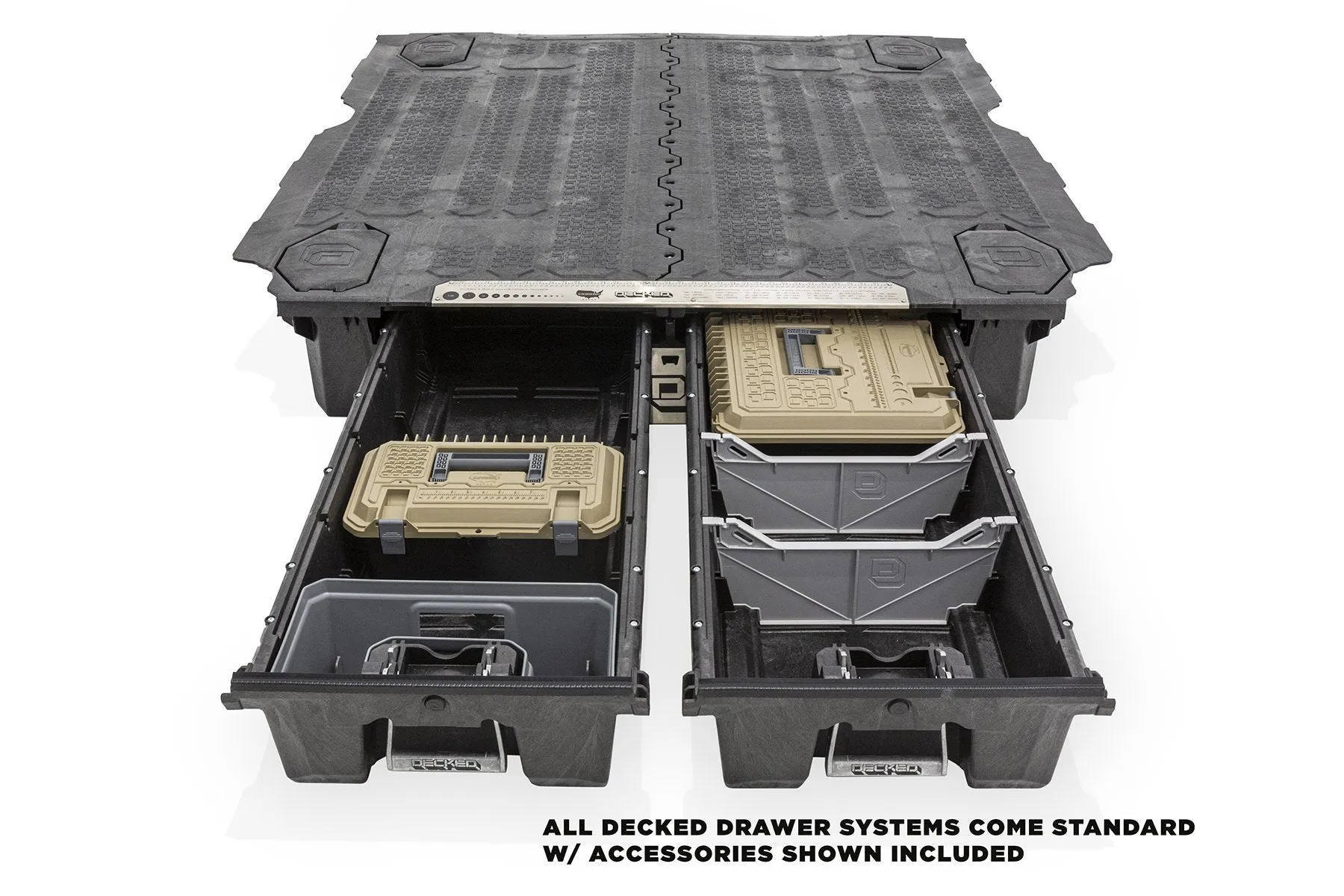

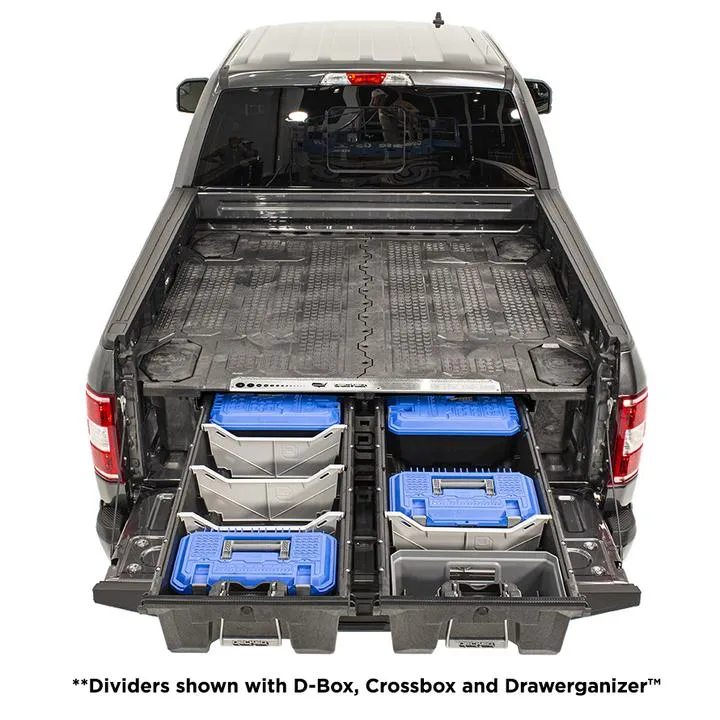

All DECKED Drawer Systems come standard with the following accessories included at no extra charge: (1) D-Box Desert Tan, (1) Crossbox Desert Tan, (1) DRAWERGANIZER™, Set of (2) Drawer Dividers.

PRO POWER ONBOARD ELECTRICAL SYSTEM: You can still install a DECKED System with an F150 with the new Pro Power Onboard electrical generator, but access to outlets will be compromised. If you purchased this add-on, the lower plugs and upper buttons are accessible, but the upper left 4 prong plug will not be accessible as cover will not open up fully.

NOTE: Drawers are full bed-length drawers, but do not fully extend. Max drawer extension: 42" for reasons related to physics.

NOT COMPATABLE with any in-bed towing packages including 5th Wheel and Gooseneck packages.

LINERS: Works with spray-in bed liner, but NOT a drop-in plastic bed liner.

BEDRUG: Works with BedRug mat, but NOT with a BedRug full liner.

NOTE: If your Ford pickup has a tailgate assist handle mounted on the tailgate, this MAY interfere with the DECKED unit, depending on your model year. You can easily remove the handle and the tailgate step will not impact the installation or use of your DECKED unit.

DOES NOT FIT: ANY stepside or flairside beds. They are too narrow. Does not fit the F150 short bed (5' 6") SuperCrew Heritage made from 2001-2003 (2004 badged as the SuperCrew Heritage) with the Stepside / Flareside tailgate, or the 2004-2009 version.

3-YEAR WARRANTY: We offer a 3-year limited warranty on all DECKED products.
