Introducing our brand new range of IP67 Neon Flex, at only 10 x 20mm and featuring a 90 CRI spot-free high lumen output, this revolutionary neon flex can be recessed or surface mounted making it a complete, highly versatile systematic installation solution.

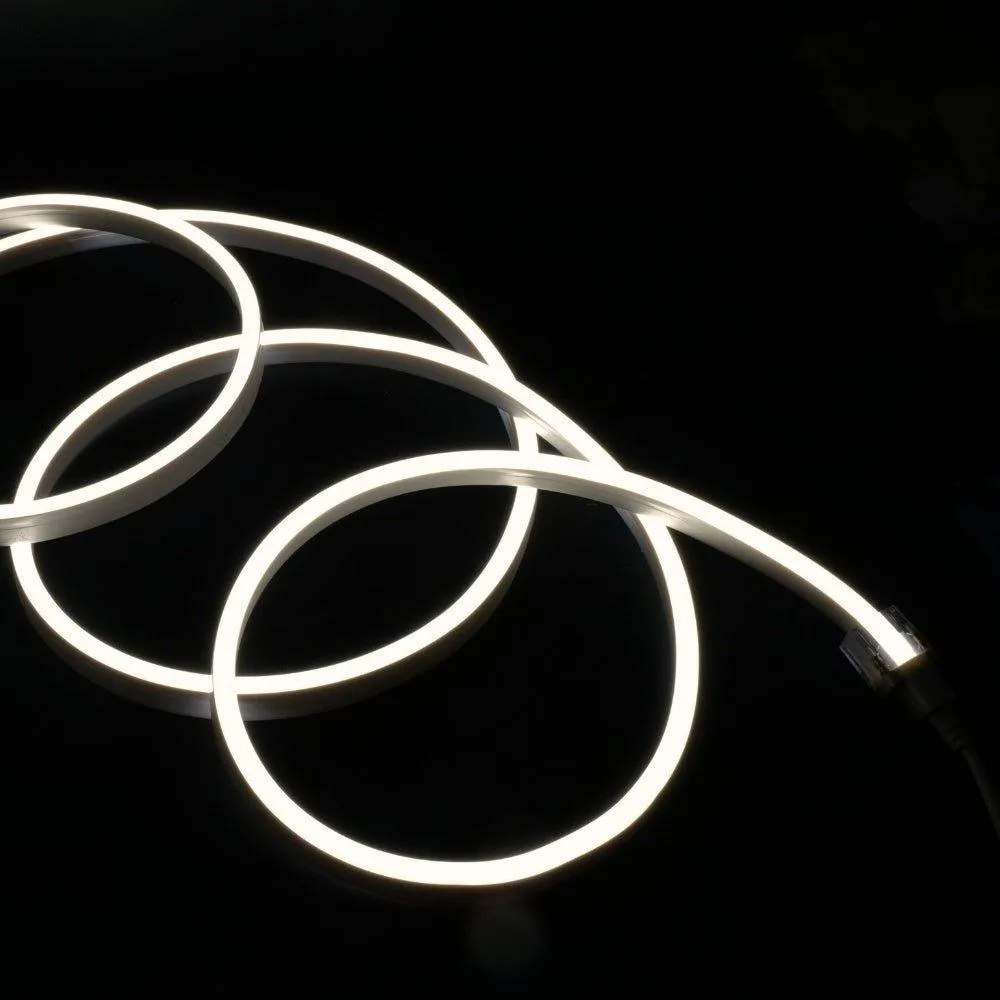

Our high-quality IP67 LED Neon Flex is horizontal bending which emits a bright warm white LED light from the top of the flex. Our led neon flex is a low voltage, compact, highly flexible, Pixel-free, Linear lighting solution. It can do a continuous run of 20 metres without any voltage drop and 40 metre if powered from both ends.

Our LED flexible neon is designed for both outdoor and indoor architectural projects in commercial installations. These include settings such as shopping centres, hotels, restaurants and many other applications where a neon light would be required.

Available in IP67 making it suitable for outdoor installations. Suitable for use with neon flex mounting channel. We recommend installing our LED neon flex within a LED Profile. These offer protection for the neon flex and the aluminium material acts as a heat sink, reducing the chance of overheating and prolonging the product's life.

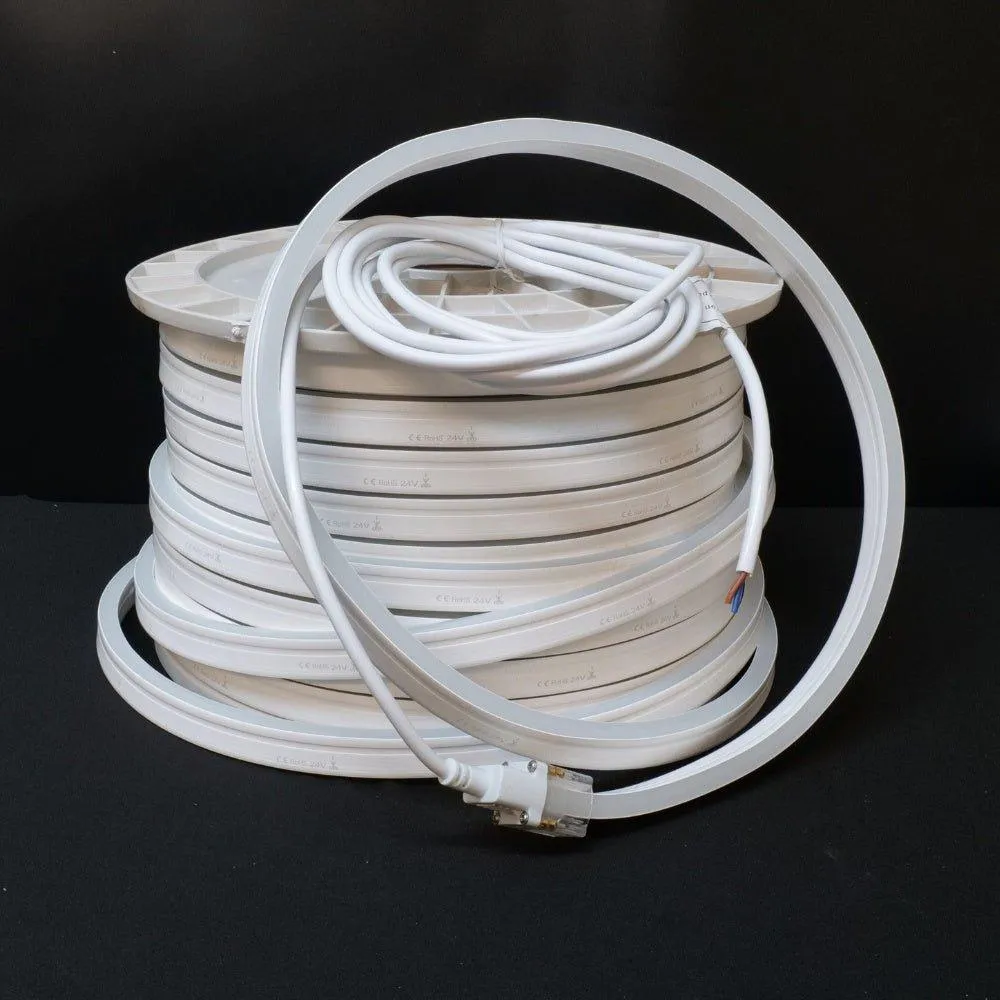

The lights are cut from a 50-metre roll and made as per your specific requirements. If cut, we cannot guarantee the IP67 Rating unless resealed by ATOM LED.

Specification:

• Working Voltage: DC 24V
• Light Colour: Natural White 4000K
• LEDs: 2835 SMD
• Cutting: 12.5cm
• Continuous run: 20 Metre
• Strip Backing: White
• Waterproof Rating: IP67 Waterproof
• Working Temperature: -20-60 degree

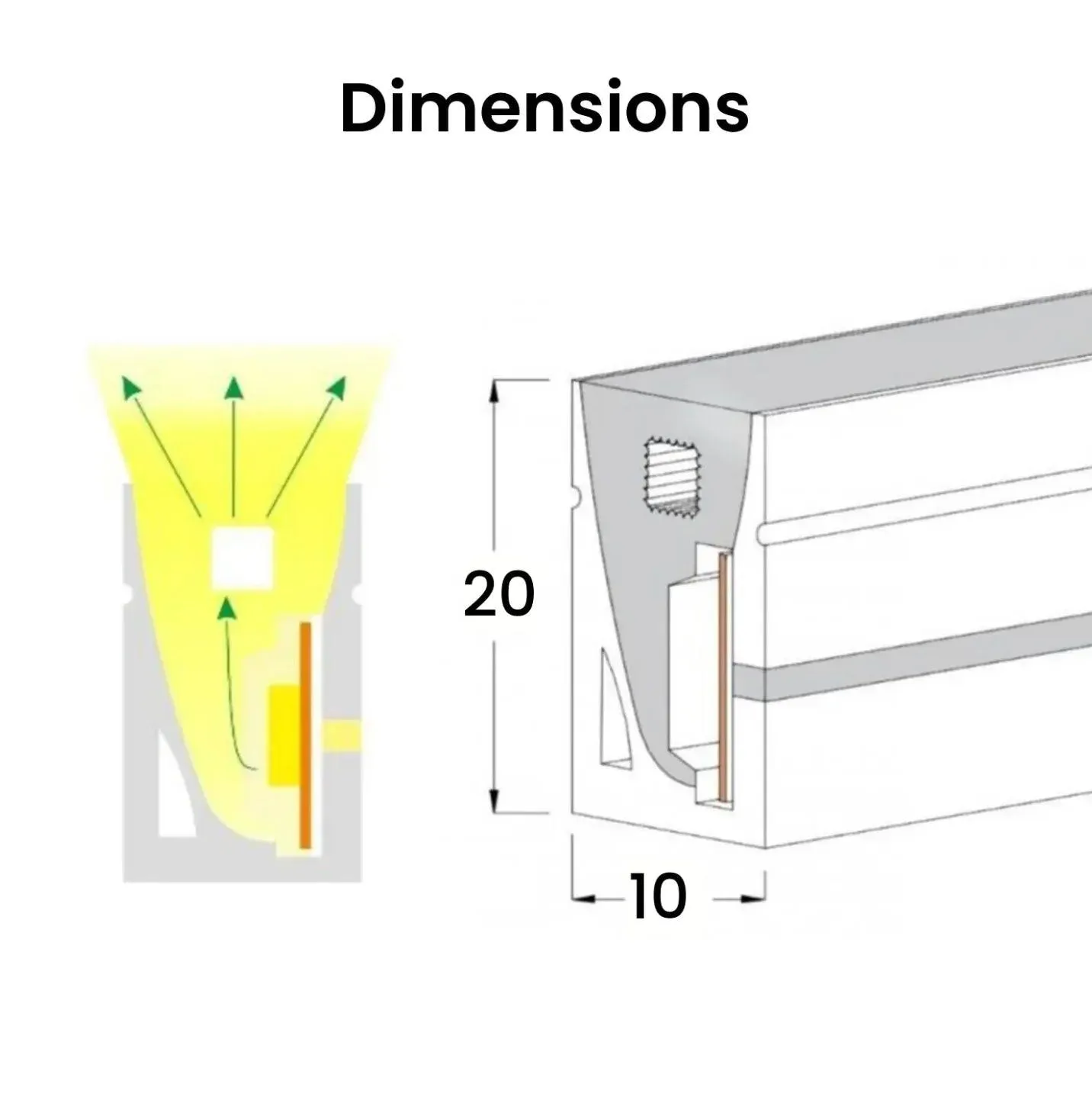

• LED Neon Flex Dimension: 10 x 20mm
• Power: 9 W/Meter

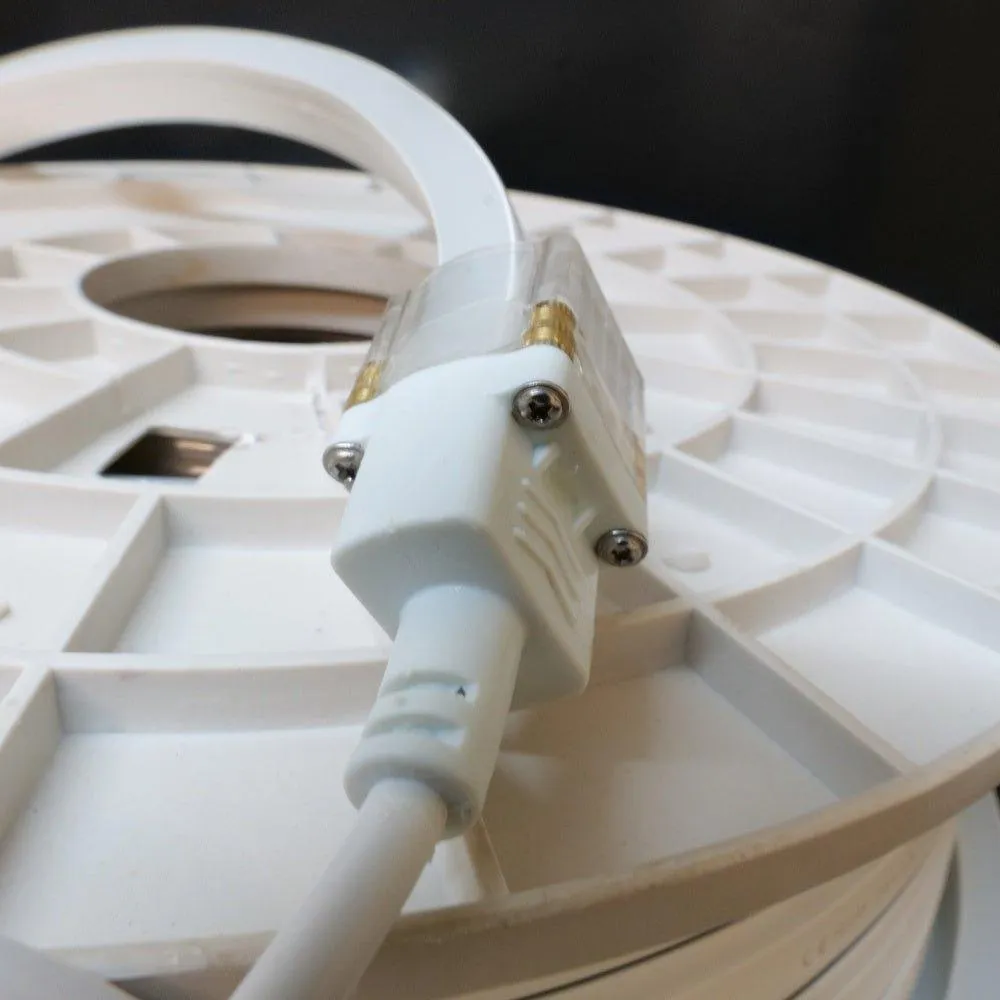

• Extension Lead: 3 Metre Extension Lead
• LED Chip: Epistar

Package Contents:

LED Neon Flex Only

Power Supply Needed: DC 24V Power Supply

1 Metre Length : DC 8W
Upto 5 Metre Length : DC 24V 50W
Upto 10 Metre Length: DC 24V 100W
Upto 15 Metre Length: DC 24V 150W
Upto 20 Metre Length: DC 24V 200W
